Honda BF150 (150HP Outboard)
INTRODUCING THE BF150 (150HP OUTBOARD)
The BF150 features Variable Valve Timing and Lift Electronic Control (VTEC™) initially developed for Honda’s high-performance sportscars.
Introduced in the early 1990s, VTEC™ is the benchmark technology used on every Honda motor vehicle sold today.
The system ensures smooth, stable idling with an even further reduction in fuel consumption, while the increased valve lift at high revs broadens the torque curve and provides incredible top-end power.
Along with Honda’s Programmed Fuel Injection, the BF150 incorporates Lean Burn Control technology, which allows combustion to operate on a leaner air/fuel ratio than stoichiometric air/fuel.
An O2 sensor, together with the ECM, precisely controls the air/fuel mixture for the best fuel economy at cruise settings. The mode in which lean burn control is used during cruising to achieve higher fuel economy is referred to as ECOmo (Economy Controlled Motor).
Pair this with the BF150’s Multi-Port Programmed Fuel Injection (PGM-FI) that delivers the precise amount of air/fuel to each cylinder, and what do you get? Quick starts, instant throttle response and low fuel consumption.
All shafts, the Steering Arm and the Tilt Tube are made from stainless steel. Alongside the Freshwater Flushpoint that flushes debris and saltwater out of the engine, extending the life of the outboard, you’ve got durability with long-term corrosion resistance!
The starter motor is inverted into a sealed chamber that protects the starter bendix drive from the elements.
And a crankshaft-driven, automotive-style trichoid oil pump ensures the long-term durability of critical engine components.
STILL MORE FEATURES!
The BF150’s Linear Air Fuel and knock sensors help determine the correct fuel flow and ignition curve. They improve the overall engine operation and efficiency and prevent engine damage.
The BF150 also benefits from the patented, ‘double sealed’ multi-layered paint process of its Corrosion Protection System. Sacrificial anodes and stainless steel technology, along with waterproof connectors, all enhance corrosion protection.
And three separate cooling systems keep the BF150’s cylinder head cooler for more long-term durability.
A quick movement of the throttle control activates the BLAST™ system, advancing the ignition curve aggressively. ‘Hole shot’ is vastly improved as more horsepower gets the hull up on plane quicker.
DUAL OVERHEAD CAM (DOHC)
A powerful, compact 24-valve DOHC design creates more valve lift to pull in more air for increased horsepower. The low-maintenance design allows easy adjustment of the rocker arms. No multiple shims or trial-and-error adjusting needed.
DUAL STAGE INDUCTION
A variable air intake manifold delivers top performance at every speed. At low speeds, air passes through a long intake runner, increasing low-end torque. Above 3500rpm, shutter valves open to shorten the air’s path, boosting air flow for more high-end torque. The result is a simple, compact design that delivers top performance at every speed.
40AMP BATTERY CHARGING POWER

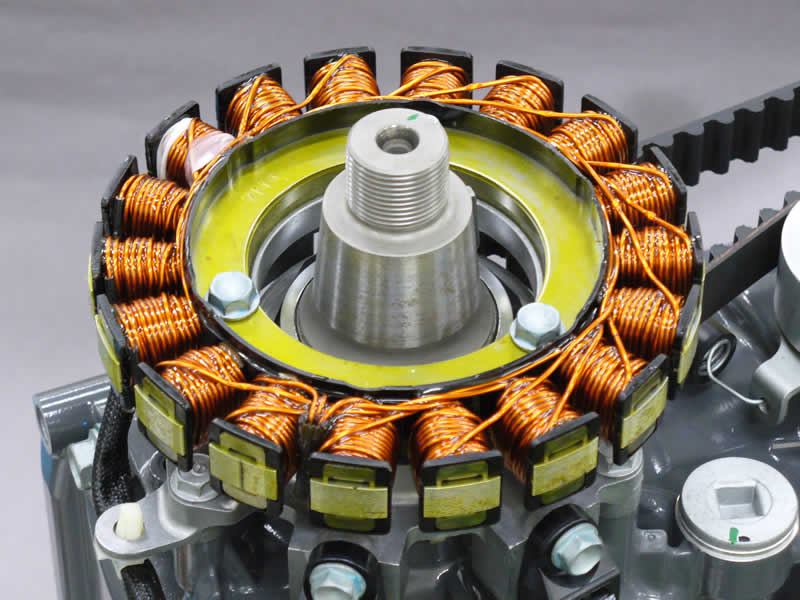

Honda’s proven ‘on demand’, 51amp belt-driven alternator reduces heat buildup and provides superior battery charging capability. 30amp at 1000rpm and 40amp+ above 2000rpm.

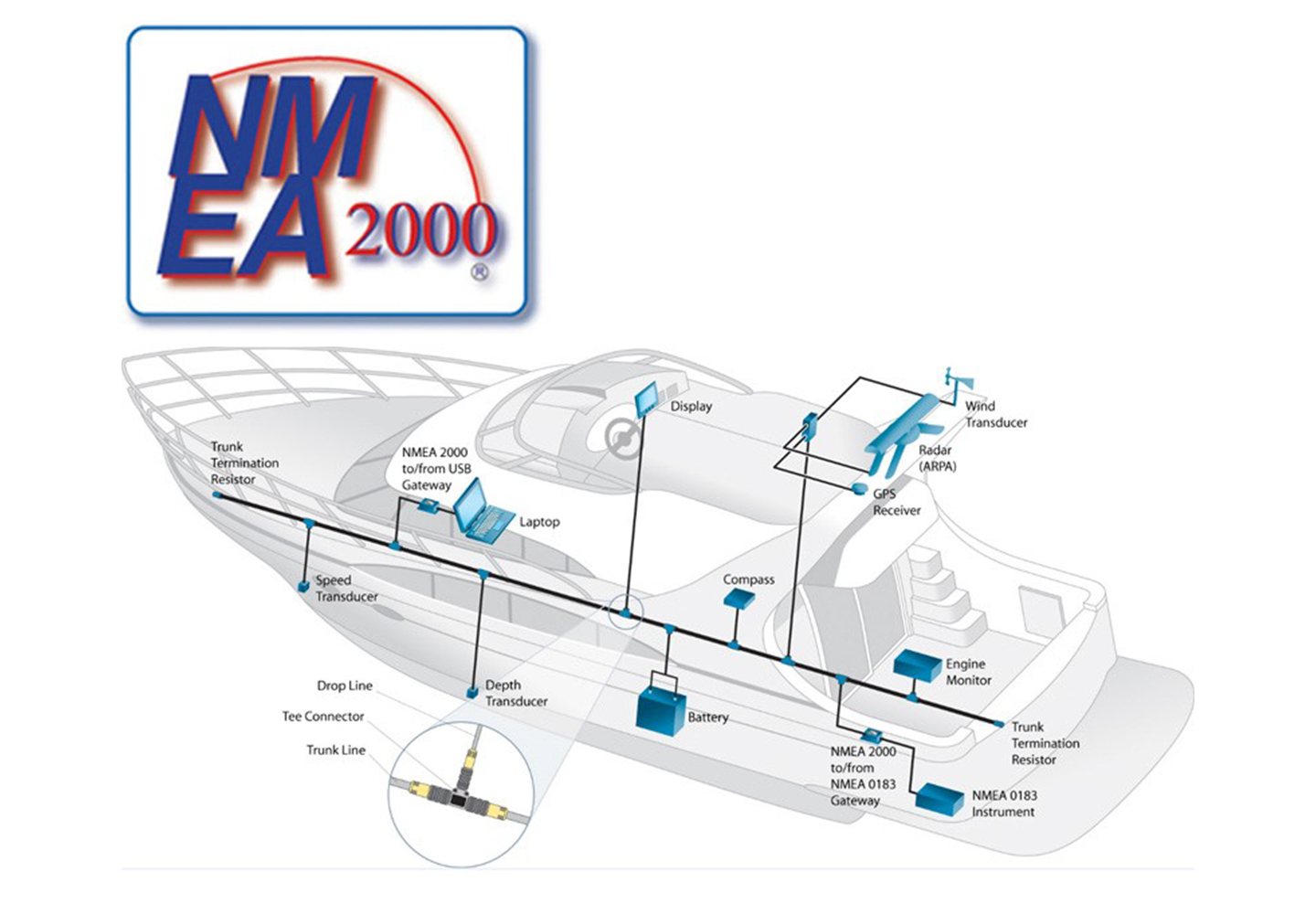

The BF150 can communicate with onboard electronics to deliver a widerange of information to head-unit displays. When networked with a Lowrance HDS unit, for example, engine data such as speed, revs, temperature, fuel usage and other data can be displayed on the unit’s screen.
The ECM receives constant input from 18 different sensors to deliver instant starts, smooth operation, strong performance and excellent fuel efficiency.
ENGINE ALERT SYSTEM
With Honda’s Engine Alert System, the ECM monitors vital engine functions and prevents engine damage by alerting the operator of overheating, low oil PSI, over-rev, water in fuel, battery condition, and critical engine functions.
SINGLE LATCH COWL
Four securing points to ensure a water-tight seal, along with a convenient front-mounted single latch.
BUILT-IN PILOT TUBE
Built-in pilot tube in the gear case eliminates the need to drill holes in your boat for installation.
4-stroke DOHC inline 4-cylinder / 16-valves
- BORE & STROKE
87 x 99 mm
- FULL THROTTLE RPM RANGE
- RATED POWER
150HP @ 5,500 RPM
- COOLING SYSTEM
Programmed fuel injection
- IGNITION SYSTEM
Full transistorised battery ignition
- STARTING SYSTEM
- POWER TRIM & TILT
- TRIM RANGE
-4 ° to +16 °
- TILT RANGE
- EMERGENCY STOP SWITCH
- OIL PRESSURE ALERT
- TEMPERATURE ALERT
- SPEEDOMETER PICKUP
- GEAR RATIO
- GEAR SHIFT
- OVERALL LENGTH
- OVERALL WIDTH
- OVERALL HEIGHT (L-TYPE)
- OVERALL HEIGHT (X-TYPE)
- OVERALL HEIGHT (XXL-TYPE)
- TRANSOM HEIGHT (L-TYPE)
- TRANSOM HEIGHT (X-TYPE)
- TRANSOM HEIGHT (XXL-TYPE)
- DRY WEIGHTS (L-TYPE)
- DRY WEIGHTS (X-TYPE)
