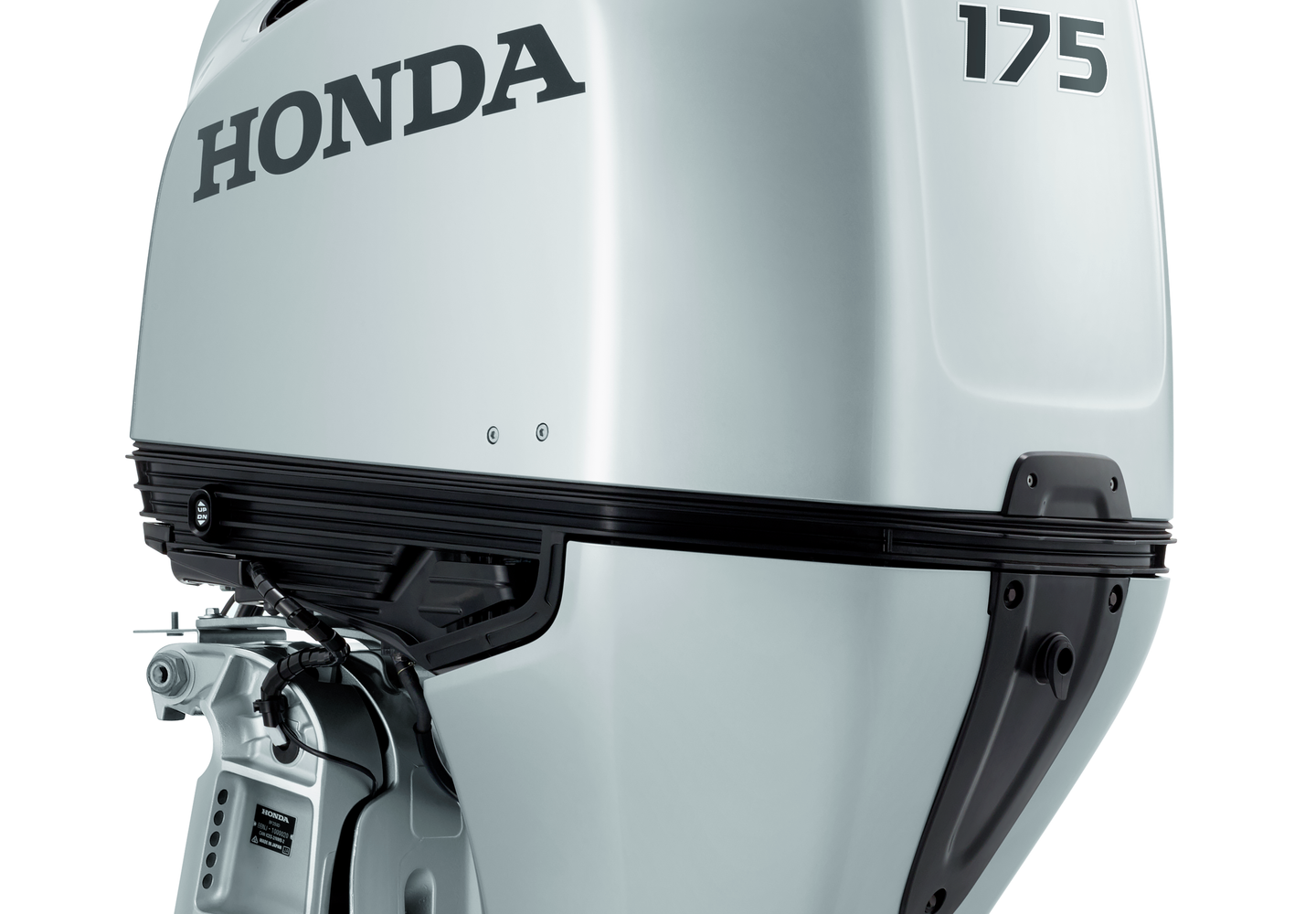

Honda BF175 (175HP Outboard)

Description

INTRODUCING THE BF175 (175HP OUTBOARD)

WORLD FAMOUS QUALITY

BF175

By sharing many components with the Honda Odyssey and Honda Pilot, the BF175 gains years of proven Honda engineering, precision manufacturing and reliability.

The BF175 features a Large Displacement Engine with a powerful, compact 24-valve SOHC design. Lacking the bulk and weight of long intake runners and multi-camshafts, the narrow V6 design offers top performance and durability, based on Honda’s automotive engineering excellence.

The High Performance Gearcase is designed to get you going faster, all the while reducing hull porpoising and minimising spray, thus increasing acceleration and top speed.









NOW WITH DRIVE BY WIRE

All four of Honda’s flagship V6 engines now feature multiple rigging options for a customized on-the-water experience; choices include both electronic Intelligent Shift and Throttle (iST®) which is more commonly known as Drive By Wire (DBW) and mechanical control options; newly designed user interfaces; and multi-function colour display.

The Drive By Wire engine control units offer binnacle-mounted throttle controls for as many as four engines, or side-flush mount for single engines. The mechanical control supports up to two engines and a single-helm location as well as a side-mount control box. The design of the components compliments their operation; the DBW throttle controls are sleek and modern, while the mechanical controls are tough and rugged.

GREATNESS COMES IN 2’S

The BF175 features Dual Stage Induction. The result is a simple, compact design that improves overall operation.

The competition’s exhaust track goes through the middle of the oil pan, pre-heating the oil. Honda’s dual exhaust headers wrap around the outside of the oil pan, which not only reduces heat build-up, but also increases engine efficiency and performance.

And the BF175 features a unique 2-Pass Cooling System, which maintains an even temperature on all cylinders. This results in increased cooling efficiency and long-term durability.

MULTI-PORT PROGRAMMED FUEL INJECTION

The BF175 delivers the precise amount of fuel/air to each cylinder. Resulting in easy starts and instant throttle response with superior fuel efficiency.

Along with Honda’s Programmed Fuel Injection, the BF175 incorporates Lean Burn Control technology, which allows combustion to operate on a leaner air/fuel ratio than stoichiometric air/fuel.

An O2 sensor, together with the ECM, precisely controls the air/fuel mixture for the best fuel economy at cruise setting. The mode in which lean burn control is used during cruising to achieve higher fuel economy is referred to as ECOmo (Economy Controlled Motor).

A FEW OTHER FEATURES

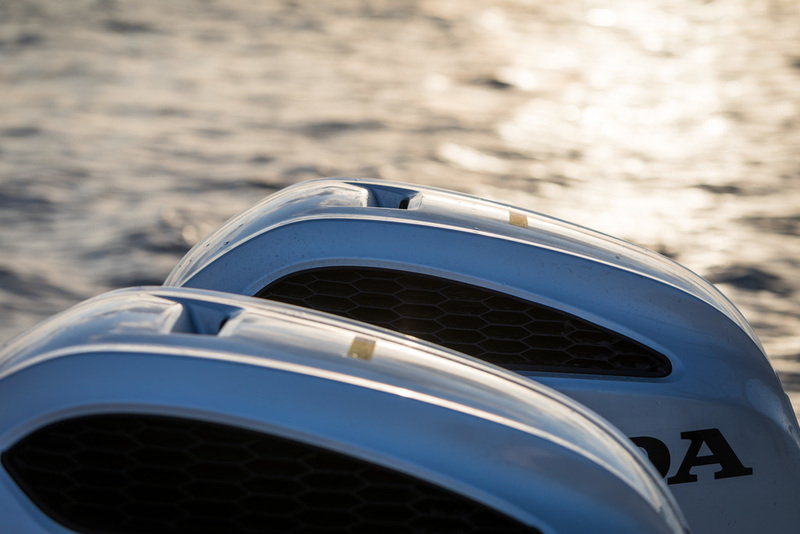

The Single Latch Cowl has four securing points to ensure a water-tight seal, along with a convenient front-mounted single latch.

The starter motor is inverted into a sealed chamber that protects the starter bendix drive from the elements.

And with Honda’s Engine Alert System, the BF175’s ECM monitors vital engine functions and prevents engine damage by alerting the operator of overheating, low oil PSI, over-rev, water in fuel, battery condition, and critical engine functions.

ENGINE COMMAND SYSTEM

The ECM receives constant input from 18 different sensors to deliver instant starts, smooth operation, strong performance and excellent fuel efficiency.

BLAST

A quick movement of the throttle control activates the BLAST™ system, advancing the ignition curve aggressively. ‘Hole shot’ is vastly improved as more horsepower gets the hull up on plane quicker.

DUAL STAGE APPLICATIONS

Easy for re-powers. 26″ centre-to-centres. Many competitors have to mount on 28″ centre. Ensures maximum performance and manoeuvrability.

60AMP BATTERY CHARGING POWER

Honda introduces a proven ‘on demand’ 90amp belt-driven alternator that reduces heat build-up and provides superior battery charging capability.

POSITIVE LUBRICAITON

A crankshaft-driven, automotive-style trichoid oil pump ensures the longterm durability of critical engine components.

CORROSION PROTECTION SYSTEM

A patented, ‘double sealed’ multi-layered paint process. Sacrificial anodes and stainless steel technology, along with waterproof connectors, all enhance corrosion protection.

FRESH WATER FLUSHPORT

Flushes debris and saltwater out of the engine, extending the life of the outboard.

STAINLESS STEEL

Steering Arm, Tilt Tube and all Shaft. Durability with long-term corrosion resistance!

BUILT-IN PILOT TUBE

Built-in pitot tube in the gear case eliminates the need to drill holes in your boat for installation.

NMEA2000 COMPATIBLE

The BF175 can communicate with onboard electronics to deliver a widerange of information to head-unit displays. When networked with a Lowrance HDS unit, for example, engine data such as speed, revs, temperature, fuel usage and other data can be displayed on the unit’s screen.

ENGINE

  • TYPE
    4-stroke SOHC 60 ° V6 / 24-valves
  • DISPLACEMENT
    3,471cc
  • BORE & STROKE
    89 x 93 mm
  • FULL THROTTLE RPM RANGE
    5000-6000 RPM
  • RATED POWER
    175HP @ 5,500 RPM
  • COOLING SYSTEM
    Water cooled (Thermostatically controlled)
  • INDUCTION
    Programmed fuel injection
  • IGNITION SYSTEM
    Micro-computer programmed
  • STARTING SYSTEM
    Electric
  • EXHAUST
    Through Prop
  • ALTERNATOR
    60-Amp
  • POWER TRIM & TILT
    72 °
  • TRIM RANGE
    -4 ° to +16 °
  • TILT RANGE
    72 °

SAFETY FEATURES

  • EMERGENCY STOP SWITCH
    Standard
  • OIL PRESSURE ALERT
    Standard
  • TEMPERATURE ALERT
    Standard
  • REV-LIMITER
    Standard
  • SPEEDOMETER PICKUP
    Standard

DRIVE

  • GEAR RATIO
    1.87:1
  • GEAR SHIFT
    F-N-R
  • PROPELLER
    Optional

DIMENSIONS

  • OVERALL LENGTH
    920mm
  • OVERALL WIDTH
    625mm
  • OVERALL HEIGHT (L-TYPE)
    n/a
  • OVERALL HEIGHT (X-TYPE)
    1,800mm
  • OVERALL HEIGHT (XXL-TYPE)
    n/a
  • TRANSOM HEIGHT (L-TYPE)
    n/a
  • TRANSOM HEIGHT (X-TYPE)
    635
  • TRANSOM HEIGHT (XXL-TYPE)
    n/a
  • DRY WEIGHTS (L-TYPE)
    n/a
  • DRY WEIGHTS (X-TYPE)
    272
