INTRODUCING THE BF100 (100HP OUTBOARD)

A SHINING LIGHT

BF100 Studio

The updated BF100 comes packed full of features that draw on Honda’s unparalleled history as an engine manufacturer.

Powered by the same engine that runs one of Honda’s best-selling cars, the ‘Jazz’, the BF100’s pedigree cannot be questioned.

A range of Honda-exclusive technologies combine to deliver exceptional power, superior environmental performance and best-in-class fuel economy.











FUTURISTIC FEATURES

BF100

Developed for Honda’s high-performance F1 sport cars, VTEC varies the lift and duration of the intake valves to provide optimum performance both at low and high rpm.

VTEC delivers at low speeds, smooth stable idling with reduction in fuel consumption, while the increased valve lift at higher speeds broadens the torque curve and top end power.



ECONOMIC POWER

BF100

Along with Honda’s Programmed Fuel Injection, the BF100 incorporates Lean Burn Control technology, which allows combustion to operate on a leaner air/fuel ratio than stoichiometric air/fuel.

An O2 sensor, together with the ECM, precisely controls the air/fuel mixture for the best fuel economy at cruise setting. The mode in which lean burn control is used during cruising to achieve higher fuel economy is referred to as ECOmo (Economy Controlled Motor).



BLAST TECHNOLOGY

BF100

Honda’s revolutionary Boosted Low Speed Torque (BLAST™) technology boosts engine torque at low RPM under rapid acceleration.

BLAST™ traces the air/fuel ratio that results in the maximum torque for each engine revolution, while simultaneously tracing the maximum knock limit ignition timing that can be obtained using a rich air/fuel ratio in the full throttle zone and advances the ignition timing to the limit, in order to produce greater torque

This boost in horsepower and torque at low rpm contributes to strong hole shot performance to get the hull up on plane quickly!

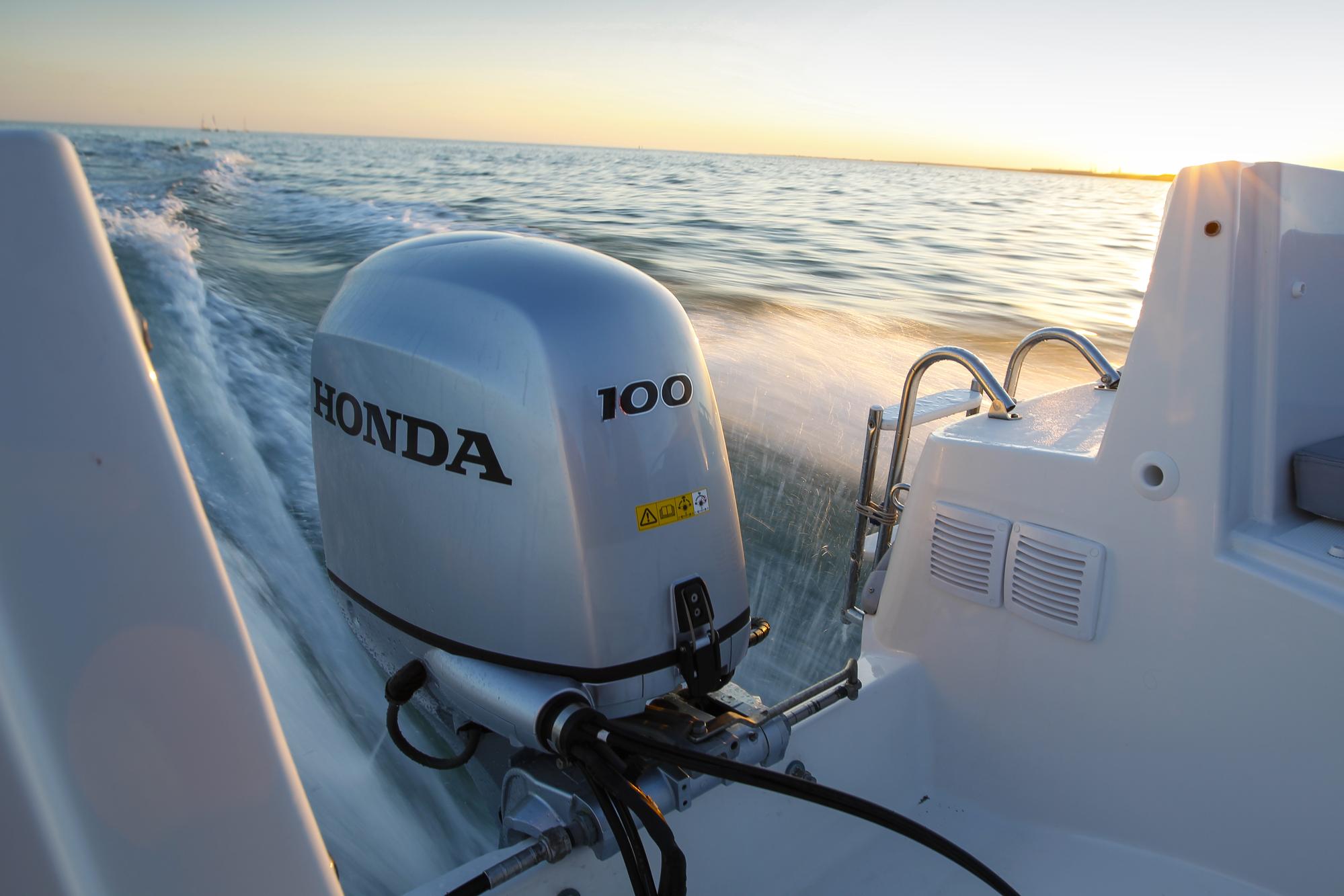

BEST IN CLASS CHARGING

BF100 - ALT

The BF100 has the best in class charging performance with a 44-amp alternator. This means your outboard is now able to charge the battery faster and power more accessories, so that you can now run that little bit of extra tech on the boat to help find the perfect catch.



ELECTRONIC FUEL INJECTION (EFI)

With an upgraded ECU the BF100 has the latest in Electronic Fuel Injection (EFI) technology. This ensures that fuel is delivered to the engine in a highly efficient and precisely measured manner. Meaning that the exact amount of fuel is delivered at the perfect time; this guarantees that the engine will run smoother at peak performance while also burning significantly less fuel.



NMEA2000

NMEA2000

Honda is wired for the future; this is why the new outboards come standard with NMEA2000 connectivity. Equipment designed to the NMEA2000 standard has the ability to share and display data, including commands and status with other compatible equipment over a single channel.



ENGINE

  • TYPE
    Four-Stroke OHC 4 Cylinders
  • DISPLACEMENT
    1496cc
  • BORE & STROKE
    73 x 89 mm
  • FULL THROTTLE RPM RANGE
    5300-6300 RPM
  • RATED POWER
    100HP @ 5,900 RPM
  • COOLING SYSTEM
    Water Cooled
  • INDUCTION
    Programmed Fuel Injection
  • IGNITION SYSTEM
    Full Transistorised Battery Ignition
  • STARTING SYSTEM
    Electric
  • EXHAUST
    Through Prop
  • ALTERNATOR
    44 amp
  • POWER TRIM & TILT
    Standard
  • TRIM RANGE
    -4° to +16°
  • TILT RANGE
    68°

SAFETY FEATURES

  • EMERGENCY STOP SWITCH
    Standard
  • OIL PRESSURE ALERT
    Standard
  • TEMPERATURE ALERT
    Standard
  • REV-LIMITER
    Standard
  • SPEEDOMETER PICKUP
    Standard

DRIVE

  • GEAR RATIO
    2.33:1
  • GEAR SHIFT
    F-N-R
  • PROPELLER
    Optional

DIMENSIONS

  • OVERALL LENGTH
    746mm
  • OVERALL WIDTH
    449mm
  • OVERALL HEIGHT (L-TYPE)
    1566mm
  • OVERALL HEIGHT (X-TYPE)
    1693mm
  • OVERALL HEIGHT (XXL-TYPE)
    n/a
  • TRANSOM HEIGHT (L-TYPE)
    537mm
  • TRANSOM HEIGHT (X-TYPE)
    664mm
  • TRANSOM HEIGHT (XXL-TYPE)
    n/a
  • DRY WEIGHT
    166kg
