Honda BF4/5/6 (4/5/6HP Outboard)

Enquire about this boat
reCAPTCHA
Sending

Portable power

Start something great on the water with the BF6, BF5 and BF4 range. The pinnacle of portable power – these lightweight outboards are super easy to start and incorporate a huge range of innovative features in the lightest possible package. Equipped with a powerful 127cc engine that provides efficient acceleration and high levels of torque, these engines are perfect for small tenders, canoes, and Inflatable Ribs.

Peace of mind

World’s largest engine manufacturer

Innovation

Honda exclusive technology

Engineered for life

More time on the water

Lightweight portable power

Easy to transport

Key features

Ultimate portable power

The BF4, 5 and 6 start from a low 27kg – their lightweight nature and new carrying handle design enables you to easily transport and store away the engines. The tiller handle can be fully folded to make the unit even more compact making storage even more convenient

Low vibration

Sick of getting a numb or tingly arm while out on the water from the harsh vibrations resonating from your engine? Not with the BF4, 5 and 6, Honda have specifically developed new rubber engine mounts that are integrated into the outboard to absorb practically all vibrations across the rpm range; delivering superior comfort to the operator, meaning that you can travel longer and further in complete comfort.

Corrosion protection system

Every Honda engine undergoes an exclusive four-stage coating process for protection against harsh conditions like ultraviolet rays and saltwater exposure. A double-sealed anodising treatment is applied to the aluminium alloy base, followed by the epoxy primer undercoat, acrylic aqua marine silver paint, and finally, the acrylic resin topcoat.

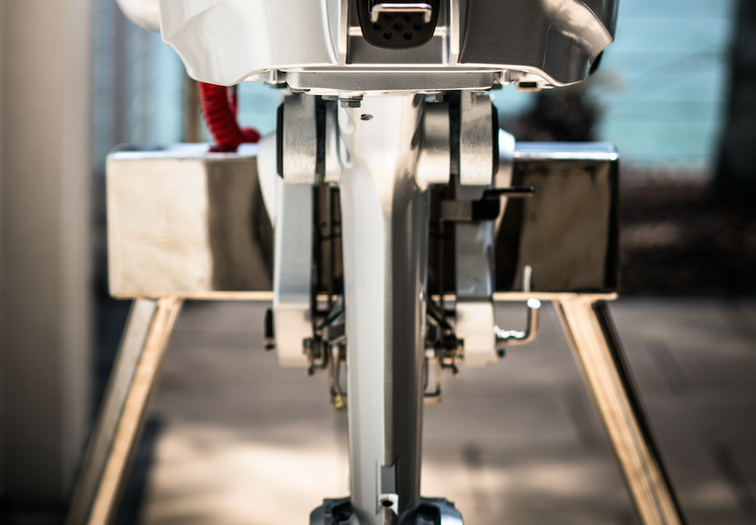

Extended running time

Each engine has an integrated large capacity fuel tank built in, hidden away under the cowl this additional 1.5l of fuel gives the operator longer continuous running time; the longest running time available in their class with up to 43 minutes at wide open throttle. Equipped with a Honda’s decompression mechanism, the BF4, 5 and 6 are a breeze to start at whatever temperature the engine may be.

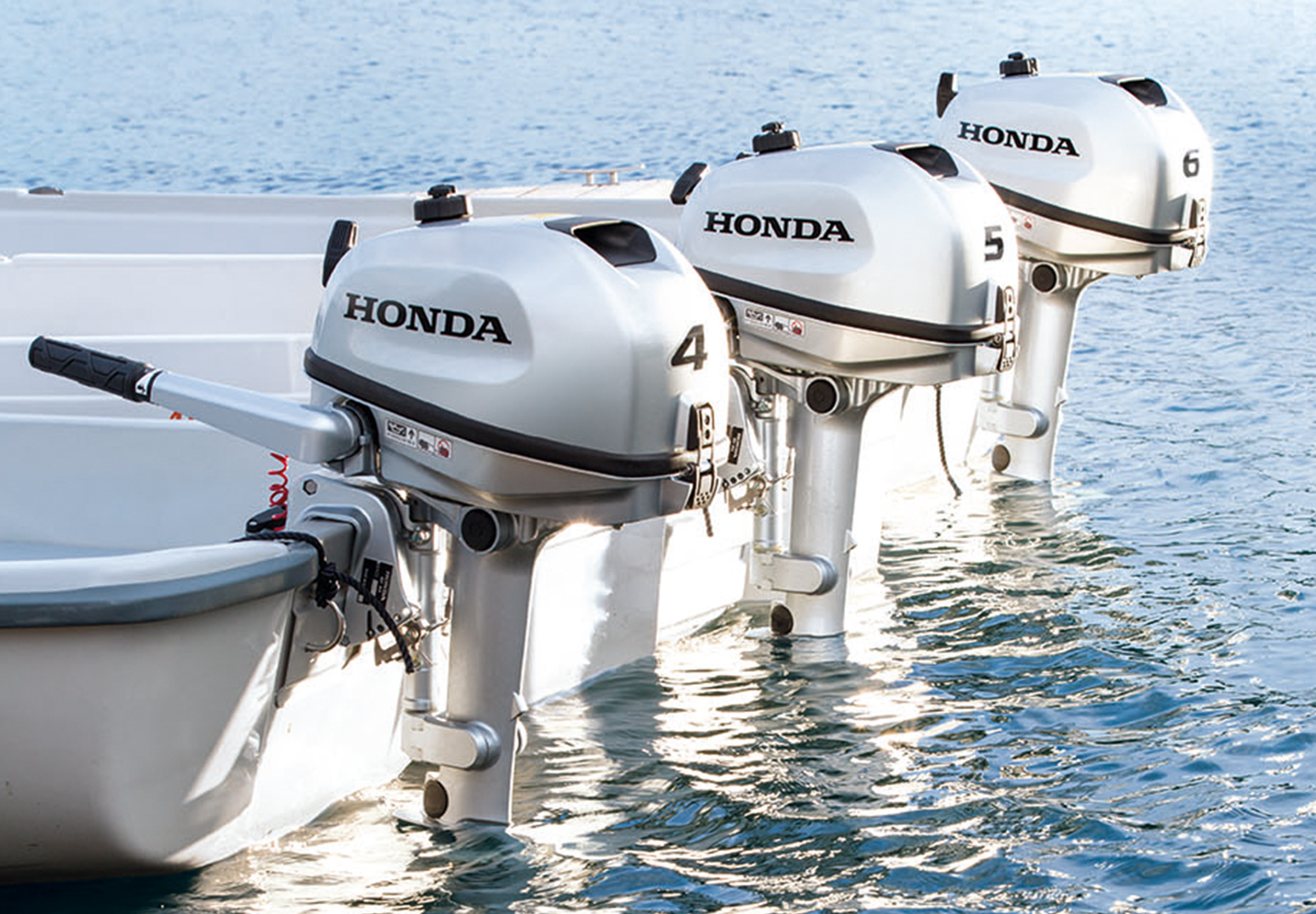

Honda exclusive

As with all Honda outboards, Honda’s portable range boasts all the benefits of Honda’s advanced four-stroke technology, like unparalleled easy starting, quiet operation and low emissions. The range offers the lowest in fuel consumption and maintenance costs, in addition to the performance and durability for which Honda is renowned.

One touch engine stop

Equipped with a one touch engine stop switch for convenience, making it safer in emergency situations and also making it much easier to turn off the engine when you reach your destination. To protect the outboard, an oil alert system automatically limits the engine speed to 2,300 rpm in case of an oil pressure drop.

Easy transport and storage

The front mount carrying handle provides superior portability and ease of installation. The easy-to-maintain, compact design allows for easy transportation and storage, these features mean you can spend less time worrying about your engine, and more enjoying the outdoors.

4/5/6HP

The Honda advantage

The world’s largest & most trusted engine maker

With over 60 manufacturing facilities across the globe, Honda produces more automotive, power equipment and marine engines than any other brand. More people put their trust behind Honda to consistently power their products, whether on land, sea or air.

4-stroke pioneer

Honda has been focused on four-stroke technology since introducing the first outboard engine of its kind over five decades ago. With an unrivalled team of R&D professionals re-defining the limits, legendary Formula 1 and motor racing pedigree enhancing your performance. It’s more four-stroke experience than anyone else on the water.

Legendary F1 and motor racing pedigree

Innovations such as the VTEC™ system (optimising power and efficiency at all engine speeds) were born out of Honda F1 technology and are now available on several high horsepower Honda outboards. A challenging spirit and never-ending passion for racing fuels the development of technologies found in every Honda outboard.

A dedicated nation-wide dealer network

All of our dealers share the same level of commitment to the Honda brand as they do their relationships with customers. When it comes to sales, service and parts, you can always rely on a Honda Marine specialist for knowledge and advice. Every Honda Marine outboard is supported by Honda’s extensive national dealer network and dedicated aftersales support team.

Powered by world class research and development

Global state-of-the-art R&D facilities are dedicated to researching, designing and developing cutting-edge products. Honda continues to challenge the way the world thinks by looking to the future through technology and innovation

Only genuine parts and accessories

Every engine has been manufactured to uphold Honda’s strict quality standards. So, the purchase of a Honda is an investment in a product that’s made to last. This ensures that when it comes to repairs or replacement, genuine parts will keep it functioning at the optimum performance level that’s expected.

Inspired by ASIMO, HondaJet and the NSX

Soichiro Honda’s willingness to challenge convention and dream big can be found today in each of our outboard engines. The same innovation used for advanced applications like robotics, corporate jets and supercars, also goes into manufacturing Honda Marine products. This is our guarantee that the best of Honda innovation is always behind you.


Product Specifications

Features
Power
Charging Output n/a
Propulsion
Propeller 5 Model Available
Safety
Trim Limit Switch No
Oil Pressure Alert Yes
Temperature Alert No
Rev-Limiter Yes
Speedometer Pickup No
Trim & Tilt
Trim & Tilt Manual
Trim Range 5-stage 4°, 8°, 12°,16°, 20°
Tilt Range 70°
Dimensions, Weights And Capacities
Weights
Dry Weight 27kg
Dimensions
Transom Height (mm) 1,147
Length (mm) 524
Overall Width (mm) 347
Warranty
Warranty
Domestic Warranty 7 Year*
Commercial Warranty 3 Year*
Performance
Performance
Rated Power 4HP @ 5,500 RPM (2.9KW)
Powertrain
Engine
Engine Type 4-stroke OHV
Starting System Recoil
Exhaust Under Water, Above Propeller
Gear Ratio 2.08:1
Displacement 127cc
Cylinders 1
Valves 2
Bore & Stroke (mm) 60 x 45
Full Throttle Range (rpm) 4,000-5,000
Cooling System Water Cooled
Carburation Carburetor
Ignition System Digital CDI
